Bring Power Where You Need It Safely
Underground electrical installation for new construction, additions, and outbuildings in Murfreesboro, Tennessee.
Running power to a detached garage, workshop, or new addition in Murfreesboro and surrounding areas often requires burying electrical lines to avoid overhead wires and meet local codes. Exposed conduit gets damaged by weather and equipment, and overhead runs limit where you can build or place vehicles. Underground electrical gives you a clean, protected route that delivers power exactly where you need it without visual clutter or safety risks.
J Industries TN installs underground electrical as part of our utilities work throughout Murfreesboro and central TN. We trench from your main panel or meter to the destination and lay PVC conduit. All connections are made in weatherproof junction boxes, and the circuit is tested before backfilling. You get a code-compliant installation that powers your building without exposed wiring or voltage drop.
If you need underground electrical in Murfreesboro and surrounding areas, get in touch with J Industries TN to plan your project.
How We Route and Install Underground Power

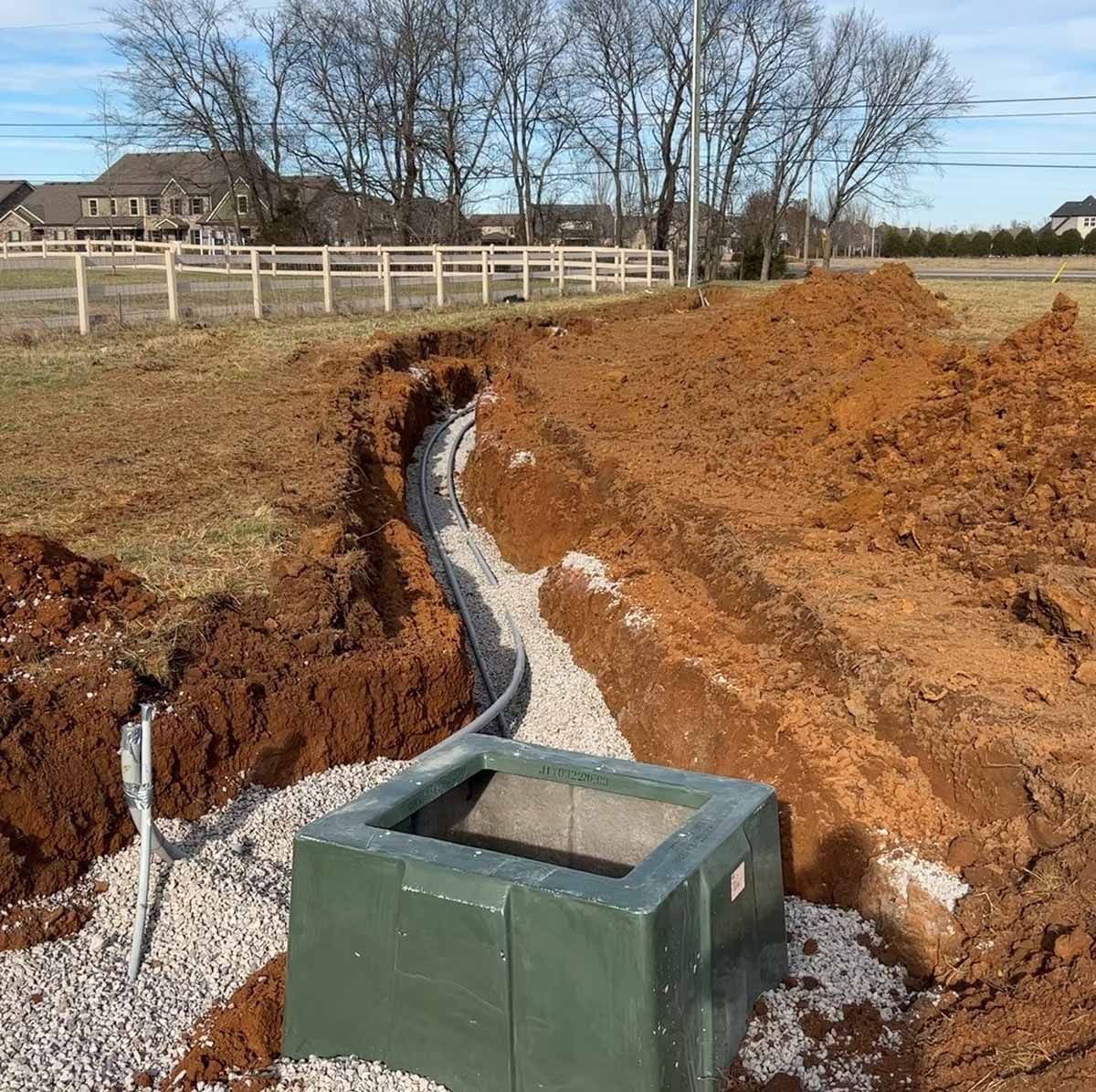

We start by mapping the shortest safe path from your panel to the new structure in Murfreesboro and surrounding areas, avoiding other utilities and obstacles. We trench to the depth required by the National Electrical Code, typically eighteen to twenty-four inches depending on conduit type. Schedule 40 or Schedule 80 PVC is laid in the trench, and we pull individual conductors through it using fish tape. Junction boxes and expansion fittings are installed where needed to handle settling or turns.
Once energized, your new circuit delivers full power without flicker or interruption. Lights, tools, and appliances run as expected, and you avoid the sagging wires and clearance issues that come with overhead installations. The trench is backfilled and compacted, and any disturbed areas are graded to match the surrounding surface.
We coordinate with inspectors and call 811 before digging to locate existing utilities. This service only includes outside trenching and conduits; but it does not cover wire pulling and testing, panel upgrades, or interior wiring in the new building.
What people ask before we start digging
Homeowners want to know how deep we dig, whether the wire can handle heavy tools, and what happens if they need to expand later. Here are the details.
How deep do you bury electrical conduit?
We bury Schedule 40 PVC at least eighteen inches deep, and Schedule 80 or direct-burial wire at least twenty-four inches. Depth depends on the wire type and local code requirements in Tennessee.
What size wire do you use for outbuildings?
Wire size depends on the distance and load. For a detached garage up to one hundred feet away, we typically use 6 AWG copper for a 60-amp subpanel. Longer runs or higher loads require larger wire to prevent voltage drop.
Can you add circuits to an existing underground run?
Not without pulling new wire. Conduit does not allow splicing underground, so any expansion requires a new trench or adding a junction box above grade. Plan for future needs during the initial install if possible.
What happens if the conduit is damaged later?
If you dig into the conduit, the circuit may short or lose power. We bury warning tape above the conduit to reduce that risk, and we mark the route on your property sketch. Call 811 before any future digging.
Do you handle the permit and inspection?
We pull the permit and schedule the inspection with Murfreesboro building officials. The inspector verifies depth, conduit type, wire size, and grounding before we backfill. You receive a copy of the approved permit.
Underground electrical in Murfreesboro requires coordination with codes, soil conditions, and your power needs. J Industries TN manages utilities projects that bring safe, buried power to your property. Contact us to discuss your underground electrical plans.
